Z10 Diamond Black
- Features
- Specifications
- Included in the Box
The new Product Recognizing Grinder (P.R.G.)
To ensure the optimum grind for every specialty, JURA engineers developed the Product Recognizing Grinder (P.R.G.). The electronically controlled high-performance grinder adjusts in a fraction of a second to the predefined consistency of grind – much more quickly and frequently than could be done manually. Its spectrum ranges from very fine for short classics to very coarse for long specialties. But coffee lovers don’t need to worry, because the adjustment takes place automatically every time a beverage is prepared and, if preferred, can also be individually selected before each preparation with the Aroma Selection feature.

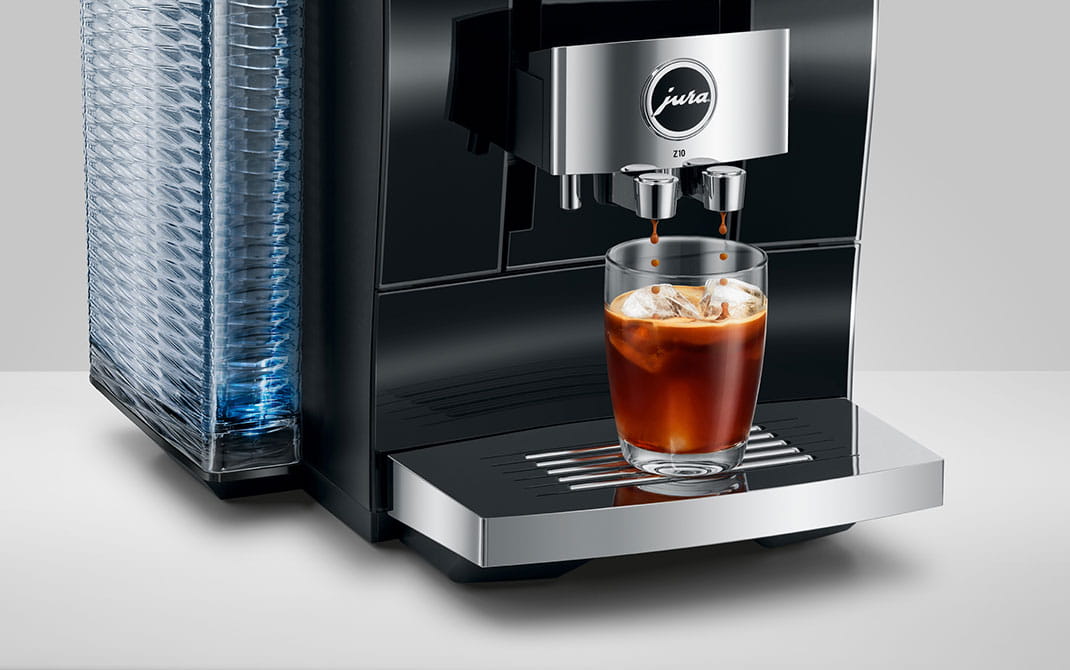

Cold brew – extreme freshness
Thanks to the Cold Extraction Process, the Z10 prepares genuine cold brew specialties. While many conventional cold coffee drinks consist mostly of hot-brewed coffee which is then chilled, in the Z10 extraction takes place with cold water, pulsed at high pressure, and more coarsely ground coffee. The end result is a natural, energizing and refreshing beverage in which the fruity aromas of the coffee can be fully enjoyed without being overwhelmed by bitters. Anything else would just be a cold coffee.
Eighth-generation brewing unit
The brewing unit is the most important part of any automatic coffee machine. For the Z10, JURA has created the eighth-generation brewing unit. With its unique 3D brewing technology, it allows the water to flow evenly through the ground coffee at multiple levels. This makes the most of the aroma, both in hot specialties and with cold brewing.

Lasting elegance

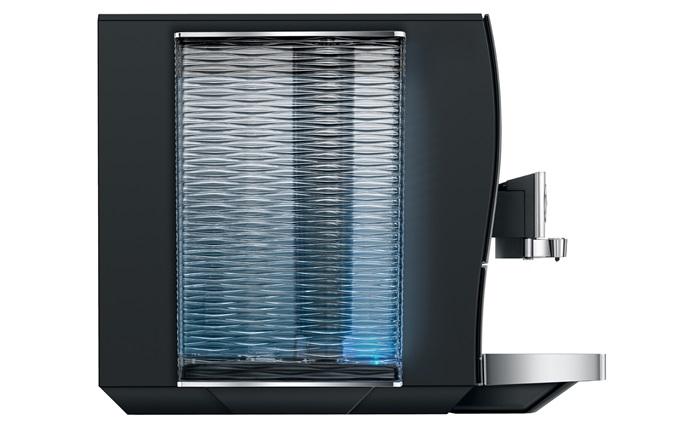

Design and the careful choice of materials play an important role in product durability. JURA always strives to achieve a design that people will be proud to own and that will still look fresh and modern after many years. Uncompromising quality, durable, high-quality materials and maximum engineering precision guarantee both culinary and aesthetic excellence throughout the lifetime of the machine. The complex convex-concave aluminum front panel demonstrates the very highest standard of craftsmanship. The water tank with its elegant wave design and the harmonious filter casing are just two examples of the attention paid to what might seem like small details. As soon as you touch the Z10, you sense what true worth means to JURA.

Products | |
Espresso 2 x Espresso Cold Brew Espresso Coffee 2 x Coffee Cold Brew Coffee Cappuccino Cold Brew Cappuccino Cappuccino Extra Shot Caffè latte Cold Brew Caffè latte Caffè latte Extra Shot Caffè Barista 2 x Caffè Barista Lungo Barista 2 x Lungo Barista Espresso doppio Macchiato Cold Brew Macchiato Cortado Cold Brew Cortado Latte macchiato Cold Brew Latte macchiato Latte macchiato Extra Shot Flat white Cold Brew Flat white Flat White Extra Shot Portion of milk foam Portion of milk Pot of coffee Hot water Hot water for green tea | |
Total Specialties | 32 |
JURA Standard Specifications | |
Pulse Extraction Process (P.E.P.) | YES |
One-Touch Lungo Function | YES |
One-Touch Function | YES |
Variable Brewing Unit | 5-16g |
Grinder | Product Recognising Grinder (P.R.G) |
Thermoblock Heating System | 1 |
Milk System / Spout | HP3 / CX3 |
Coffee by-pass Chute | YES |
Aroma Preservation Cover | YES |
Hygiene Standards | |
Intelligent Water System (I.W.S.) | YES |
CLARIS Filter Cartridge | CLARIS Smart |
One-Touch Milk system | Automatic |
Integrated rinsing, cleaning, descaling | YES |
Monitored Drip Tray | YES |
JURA Hygiene: TUV-Certified | YES |
Design and Materials | |
Convex-Concave 3mm Aluminium Front | |
Amber / White illuminiation | |
Water tank illuminiation (blue) | |
Specific Advantages | |
Cold Extraction Process | YES |
Intelligent Preheating | YES |
3D Brewing Technology | YES |
Automatic Grinder Adjustment (A.G.A) | YES |
Active Bean Monitoring | YES |
Automatic switchover from milk to milk foam | YES |
Smart mode | YES |
JURA Cockpit with maintenance status display | YES |
WiFi connection to home network | YES |
Transmitter supplied standard | WiFi Connect |
Operating and Programming Standards | |
Compatible with J.O.E | YES |
Rotary Swtich (Dial) | YES |

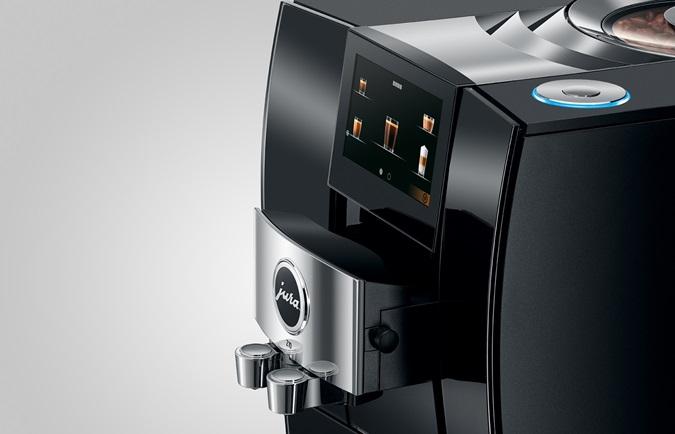

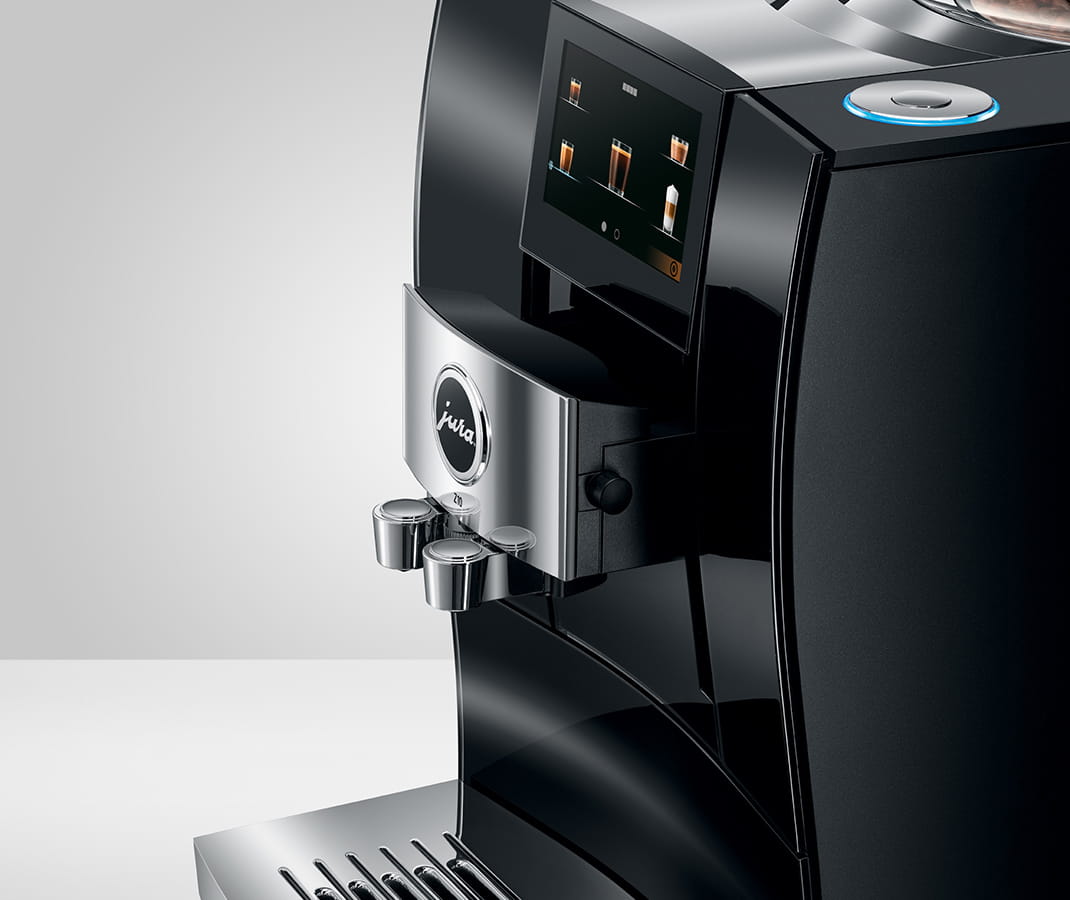

Display | 4.3" Colour touchscreen display |
Save, copy and personalise products | YES |
programmable amount of water | YES |
Coffee Strength levels | 10 |
Programmable amount of milk/foam | YES |
Milk/foam tempurature levels | 10 |
Programmable brewing tempurature | 3 |
Programmable hot water tempurature | 3 |
Energy Standards | |
Energy Save Mode (E.M.S) | YES |
Zero-Energy Switch or power switch | YES |
Programmable switch-off time | YES |
Z10 in Figures | |
Height-adjustable / Width-adjustable spouts | 78-150mm / 24-50mm |
Water tank capacity | 2.4L |
Bean Container holding capacity | 280g |
Coffee grounds container | ~ 20 |
Cable length | 1.1m |
Voltage / power | 230V ~/1450W |
Ampacity | 10 amp |
Stand-by power | 0 Wh |
Weight | 12.3 kg |
Dimensions (WxHxD) | 32 x 38 x 45cm |
Article Number | 15348 |
Product Code | |
Width | 32 cm |
Height | 38 cm |
Depth | 45 cm |
- (1) Jura Z10
- (1) Jura Starter kit which includes: Pack of 2 Cleaning tablets, 1 Claris Smart Filter, User Manuals, 1 Pre-ground Coffee Scoop and funnel, 1 Hose with 2 Connectors, 1 100ml Cappuccino Cleaner, 1 Microfiber Cleaning Cloth, 1 Easy Cappuccino Cleaning Container, 1 Filter Extension, 1 Jura branded storage bag for accessories and 1 Water Hardness Testing Strip.
- (1) 1KG FAEMA Tradizionale Espresso Beans
